Roofing Our Home, July, 2004

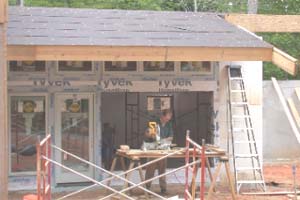

Here is the first section of our house to be covered with a roof. We needed to complete the roof over the office as fast as possible to protect the windows in the walls below. It is also nice to have a place to get out of the weather.

Roofing Our Garage and Solar Room, September, October, 2004

The roof of the garage is framed with the same wood I joists as the rest of the house, leaving a cathedral ceiling in the garage. These joists use less trees than conventional roof framing, and provide a very sturdy roof, without the problems of twisting or shrinking lumber. This photo shows the entire front with the garage completely framed. During construction we encountered a little problem in the front wall. It is not quite level or square. There were several errors that contributed to this problem. Because I know it is wrong, it will probably bother me every time I see it, but no one else notices it. We carefully attached the roofing felt with a lot of extra nails. We want a metal roof, but the price is extremely high right now. I am hoping the price will come back down, so the felt will have to serve as our rain protection for a while.

Before we built the columns under the front glass room the roof sagged about 2 inches in each corner. So, we drove it up with a temporary wood post we made. To compensate for the weight of the roof, we drove the roof up more than needed to straighten it. Then we built the permanent framework under the roof. When we released the temporary bracing the roof settled back, and it is now remarkabley straight.

(These will be updated throughout the project).
